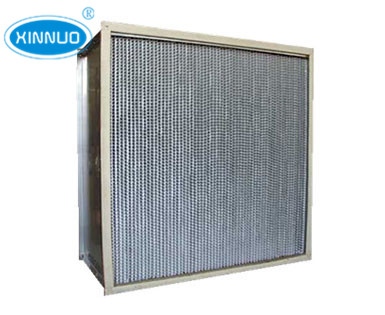

有隔板亞高效空氣過濾器
Have clapboard and efficient air filter
特點Features
●效率高、阻力低、風速均勻性好
●適用于各種局部凈化設備和潔凈廠房的中級空氣過濾或一般空氣凈化級別的末端凈化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and clean workshop intermediate air filtration or general air purification level of end purification
構成材料及運行條件
Materials and operating conditions
●框材：金屬外框或木框
●External frane：Outside the metal box or classic
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：膠板紙或鋁箔
●Filter media：JiaoBanZhi or aluminum foil
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 容塵量 Dust capacity (g) |
XN-4J | 305×305×150 | 400 | ≤110 | ≥95 | 200 |
XN-700J | 320×320×220 | 700 | ≤110 | ≥95 | 350 |
XN-10J | 484×484×150 | 1000 | ≤110 | ≥95 | 400 |
XN-17J1 | 484×484×220 | 1700 | ≤110 | ≥95 | 600 |
XN-25J1 | 726×484×220 | 2500 | ≤110 | ≥95 | 900 |
XN-34J1 | 968×484×220 | 3400 | ≤110 | ≥95 | 1200 |
XN-17J2 | 610×610×150 | 1700 | ≤110 | ≥95 | 600 |
XN-25J2 | 915×610×150 | 2500 | ≤110 | ≥95 | 900 |
XN-34J2 | 1220×610×150 | 3400 | ≤110 | ≥95 | 1200 |
XN-26J | 630×630×220 | 2600 | ≤110 | ≥95 | 900 |
XN-39J | 945×630×220 | 3900 | ≤110 | ≥95 | 1400 |
XN-52J | 1260×630×220 | 5200 | ≤110 | ≥95 | 1800 |
XN-35J | 610×610×292 | 3500 | ≤110 | ≥95 | 1200 |
XN-52J | 915×610×292 | 5200 | ≤110 | ≥95 | 1800 |
XN-70J | 1220×610×292 | 7000 | ≤110 | ≥95 | 2400 |
