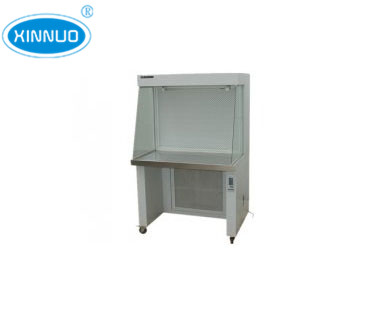

水平流潔凈工作臺
level flow clean bench
產品介紹:Product introduction
潔凈工作臺是制造局部高潔凈度的專用裝置,廣泛應用于局部潔凈度要求較高的區域:實驗室、生物制藥、光電電子、微電子等領域,潔凈工作臺根據氣流方向分為水平流潔凈工作臺和垂直流潔凈工作臺,也可根據結構不同分為單邊操作和雙邊操作兩種形式。
Clean bench is made of special local high dewateringdevice, widely Higher requirements for local cleanlinessof regional: laboratory, biopharmaceuticals, light Powerelectronics, microelectronics, etc, the clean bench, accordingto the direction of flow into Horizontal and vertical flowstream clean bench, also can be the clean bench, according tothe structure With unilateral and bilateral operation into operation in two forms.
特點:features
●準閉合式臺面,可有效防止外部氣流誘入及操作異味對人體的刺激
●采用可調風量風機系統,保證工作區風速始終處于理想狀態
●單面、雙面操作,使用更加靈活方便
●工作臺面為不銹鋼,配以鋼化玻璃側檔板,使整個工作區顯得寬敞明亮
●Must close type mesa, which can effectively prevent external flow into and
operation of the human body odor
●Using adjustable fan unit system, ensure working speed is always in the ideal state
●The single side, double side operation, use more flexibility
●Working for stainless steel mesa, match with toughened glass,
make the whole working area appears capacious and bright
構成材料:Constitute the materials
●外框:不銹鋼或冷板噴塑處理
●Outer frame of cooling-plate pensu processing: stainless steel or
●臺面:不銹鋼臺面帶紫外線殺菌燈
●Mesa: stainless steel mesa with ultraviolet germicidal lamps
●風機:壽命長、低噪音、振動小及無級調速的
德國ebm風機或國產風機
●Fan: long life and low noise and little vibration and stepless speed
German ebm fan or domestic fan
●高效濾芯:國產玻纖濾紙或美國HV濾紙
●Efficient filter: domestic glass fiber filter or American proposed.and filter
型號尺寸及其他參數Standard specification
Specifications | XN-915 | XN-122 | XN-915 | XN-122 |
Shape dimension | 1035×740×1750 | 1340×740×1750 | 1035×650×1750 | 1340×650×1750 |
Working area size | 945×640×600 | 1240×640×600 | 945×640×640 | 1240×640×640 |
Hepa filter size | 915×610×69 | 1220×610×69 | 915×610×69 | 1220×610×69 |
air(m3/h) | 1500 | 2000 | 1500 | 2000 |
wind(m/s) | 0.3~0.8 | |||
Purification level | 100級(美國聯邦標準209E) 100 levels (federal standards 209E | |||
Noise |
|
|
|
|
