化學過濾器

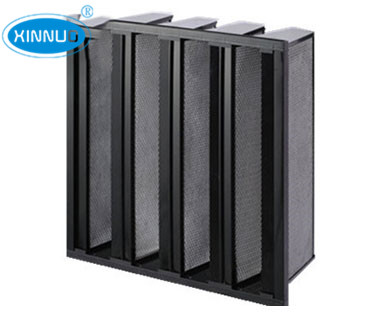

Chemical filter
特點features
●重量輕、安裝方便,所有材料都可以焚燒,環保無污染
●吸附能力強,可吸附高濃度有機污染物、二氧化碳、二氧化硫等有害氣體
●適用于舒適性中央空調系統設計
●light weight,easy installment, incinerable ,no pullutants
●good adsorption, of low concentration of organic pollutants,sulfur dioxide,carbon dioxide and other harmful gases
●good for comfort centroal air conditioning design
構成材料及運行條件
Material and operating conditions
●框材:塑膠外框ABS
●frame : ABS plastic
●分隔物:紙蜂窩
●separator: hot melt
●防塵網:尼龍網布
●dust cloth: nylon mesh
●過濾材料:活性炭顆粒
●media: granular activated carbon
●密封材料:聚氨酯
●sealant: polyurethane
型號尺寸及其他參數(Specifications)
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Initial resistance (Pa) | 去除效率 Removal Efficiency (%) | 濾料Filter materials |
XN-8J | 287×287×292 | 800 | ≤200 | 75 | 碘值600-1100活性炭顆粒 Iodine value:60-1100 |
XN-15J | 287×490×292 | 1500 | ≤200 | 75 | |
XN-18J | 287×592×292 | 1800 | ≤200 | 75 | |
XN-36J | 592×592×292 | 3600 | ≤200 | 75 |
