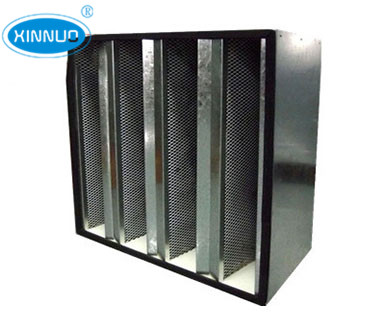

復合化學過濾器
Compound Chemical filter
特點features
●過濾材料采用優質顆粒活性炭與超細合成纖維復合而成
●可吸附低濃度的有機污染物、二氧化硫、二氧化碳等有害氣體
●適用于博物館、圖書館、高檔酒店、寫字樓、機場、高檔私人會所的空調系統
●Adopt Quality granular activated carbon composite with superfine synthetic fibers
●good adsorption of low concentration of organic pollutants,sulfur dioxide,carbon dioxide and other harmful gases
●used in museums ,libraries,luxury hotels,office buildings,airports,high end private clubs etc air conditioning systems
構成材料及運行條件
Material and operating conditions
●框材:塑膠外框ABS
●frame: ABS plastic
●分隔物:熱熔膠
●separator: Hot melt
●過濾材料:合成纖維+顆?;钚蕴?nbsp;
●media: granular activated carbon and synthetic fiber
●密封材料:聚氨酯
●sealant: Polyurethane
型號尺寸及其他參數(Specification )
型號 model | 外形尺寸 Outside dimensions (mm) | 有效過濾面積 filtering Area (m2) | 初阻力 Initial resistance (Pa) | 額定風量 Rated Airflow (m3/h) | 濾料 Filter materials |
XN-32J | 592×592×292 | 9.0 | ≤90 | 3200 | 復合纖維顆?;钚蕴?/span> Compound activated carbon |
XN-27J | 592×490×292 | 7.1 | ≤90 | 2700 | |
XN-16J | 287×592×292 | 4.5 | ≤90 | 1600 | |
XN-8J | 287×287×292 | 2.2 | ≤90 | 800 |
