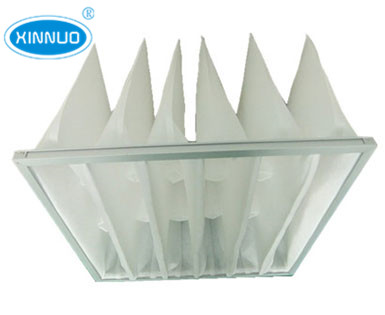

初效袋式空氣過濾器
Air filter bag filter early effect
特點Features
●可重復使用多次
●阻力小、風量大
●廣泛運用于空調系統的中級過濾
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system
of intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：白色
●Liao color: white
●密封條：醋酸乙酯
●Gasket：EVA
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
型號 model | 外形尺寸 Outside Dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（級別） Efficiency (class) | 濾料顏色 Liao color | 袋數 pockets |
XN-15J | 495×295×500mm 20″×12″×20″ | 1500m3/h |
25~35Pa
| 25-35% G3
35-45% G4 | White | 5 |
XN-25J | 495×495×500mm 20″×20″×20″ | 2500m3/h | 5 | |||
XN-20J | 595×295×500mm 24″×12″×20″ | 2000m3/h | 6 | |||
XN-32J | 595×495×500mm 24″×20″×20″ | 3200m3/h | 6 | |||
XN-38J | 595×595×500mm 24″×24″×20″ | 3800m3/h | 8 | |||
XN-18J | 495×295×600mm 20″×12″×24″ | 1800m3/h | 5 | |||
XN-32J | 495×495×600mm 20″×20″×24″ | 3200m3/h | 5 | |||
XN-25J | 595×295×600mm 24″×12″×24″ | 2500m3/h | 6 | |||
XN-40J | 595×495×600mm 24″×20″×24″ | 4000m3/h | 6 | |||
XN-45J | 595×595×600mm 24″×24″×24″ | 4500m3/h | 8 |
